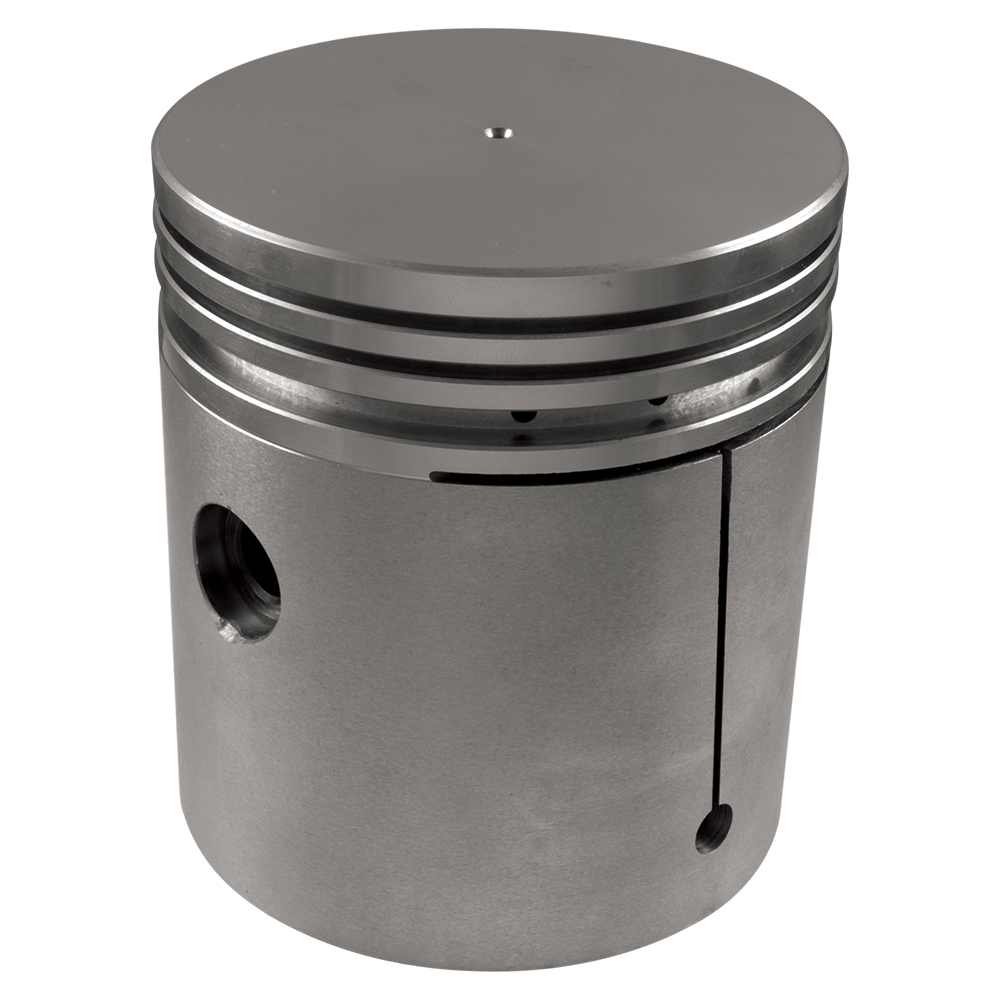

E146 Piston Set

Egge Piston Set with Pins - E146-4

$ 354.10

1925-32 Chrysler and Plymouth 4cyl. 3-5/8 Bore, Piston set

SKU: E146-4 Category:

Description

1925-32 Chrysler and Plymouth 4cyl. 3-5/8 Bore, Piston set

Specifications

Weight 5.75 lbs
Dimensions 9.00 × 8.50 × 5.00 in
Oversize

000, 020, 030, 040, 060, 080, 100
  • Application
    Chrysler
  • Bore Size (inches)
    3.62500
  • Clearance
    0.00250
  • Compression Height
    2.00000
  • Cylinders
    4
  • Distance Between Bosses
    1.312
  • Head Type
    Flat
  • Overall Length (inches)
    3.687
  • Wrist Pin size
    .750CS
  • Ring Set Up
    2)5/64,1)3/16
  • Skirt Style
    Full Round
  • Slot Type
    T
  • Application
    Chrysler
  • Bore Size (inches)
    3.62500
  • Clearance
    0.00250
  • Compression Height
    2.00000
  • Cylinders
    4
  • Distance Between Bosses
    1.312
  • Head Type
    Flat
  • Overall Length (inches)
    3.687
  • Wrist Pin size
    .750CS
  • Ring Set Up
    2)5/64,1)3/16
  • Skirt Style
    Full Round
  • Slot Type
    T
Year Make Engine
Year Make Engine
1925 MAXWELL 3.625 BORE
1928 - 1930 PLYMOUTH 170 CID
