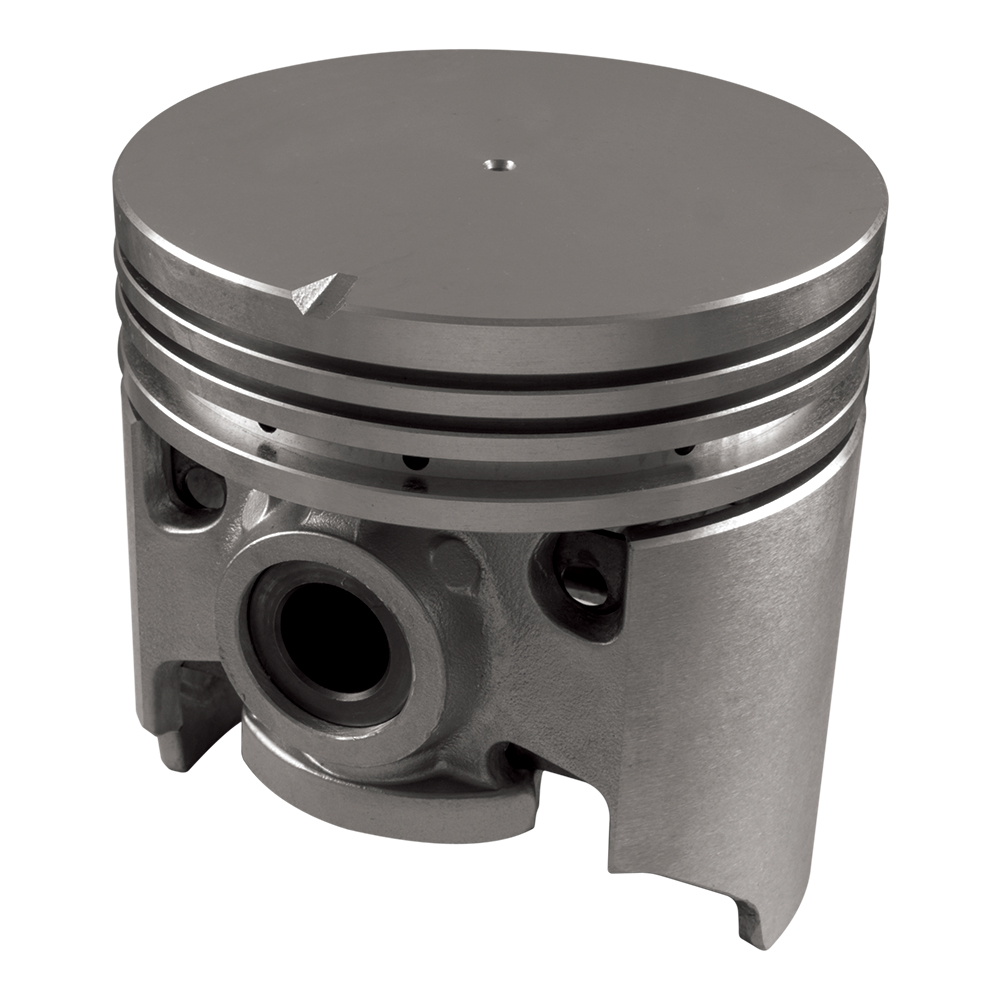

L2004 Piston Set

Egge Piston Set with Pins - L2004-8

$ 862.95

1956 Pontiac 316 cid, V8, 3.93 Bore, Piston set

SKU: L2004-8 Category:

Description

1957 Pontiac 316 cid, V8, 3.93 Bore, Piston set

Specifications

Weight 16.75 lbs
Dimensions 18.50 × 9.50 × 5.50 in
Oversize

000, 020, 030, 040, 060
  • Application
    Pontiac
  • Bore Size (inches)
    3.93750
  • Clearance
    0.00250
  • Compression Height
    1.96880
  • Cylinders
    8
  • Distance Between Bosses
    1.437
  • Head Type
    Flat
  • Overall Length (inches)
    4.1
  • Wrist Pin size
    .9805F
  • Ring Set Up
    2)5/64,1)3/16
  • Skirt Style
    Slipper Skirt
  • Slot Type
    H
  • Application
    Pontiac
  • Bore Size (inches)
    3.93750
  • Clearance
    0.00250
  • Compression Height
    1.96880
  • Cylinders
    8
  • Distance Between Bosses
    1.437
  • Head Type
    Flat
  • Overall Length (inches)
    4.1
  • Wrist Pin size
    .9805F
  • Ring Set Up
    2)5/64,1)3/16
  • Skirt Style
    Slipper Skirt
  • Slot Type
    H
Year Make Engine
Year Make Engine
1956 PONTIAC 316 CID
