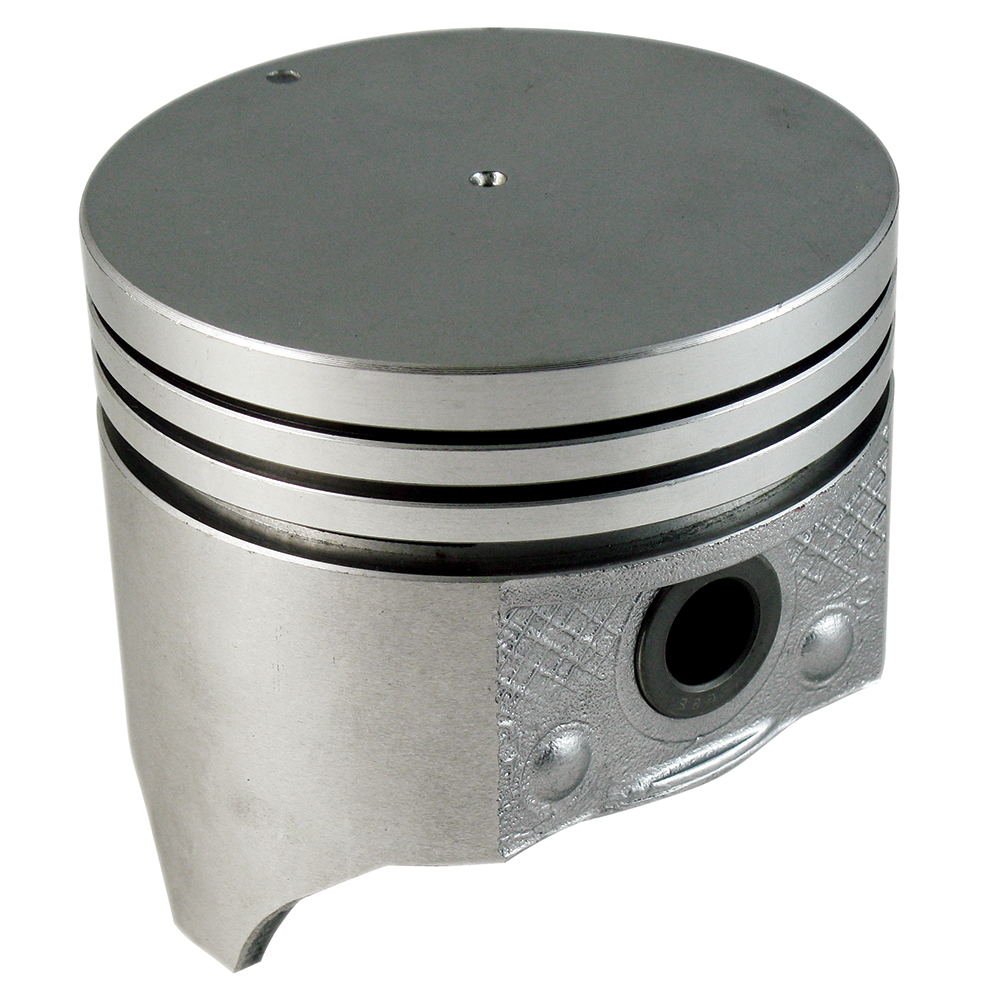

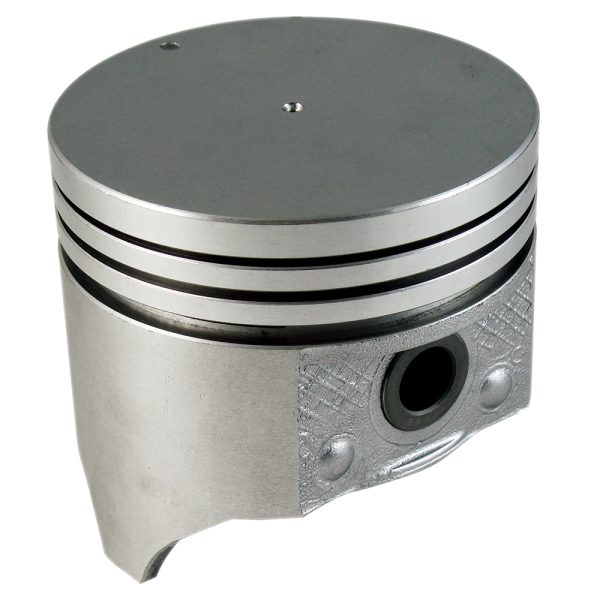

L2120 Piston Set

Egge Piston Set with Pins - L2120-8

$ 615.88

1958-62 Lincoln 430cid, 8cyl, 4.30 Bore, Piston Set

SKU: L2120-8 Category:

Description

1958-62 Lincoln 430cid, 8cyl, 4.30 Bore, Piston Set

Specifications

Weight 20.00 lbs
Dimensions 18.50 × 9.50 × 5.50 in
Oversize

000, 005, 020, 030, 040, 060
  • Application
    Lincoln
  • Bore Size (inches)
    4.30000
  • Clearance
    0.00250
  • Compression Height
    2.00000
  • Cylinders
    8
  • Distance Between Bosses
    1.375
  • Head Type
    Flat
  • Overall Length (inches)
    4.04
  • Wrist Pin size
    .975O
  • Ring Set Up
    1)5/64,1)3/32,1)3/16
  • Skirt Style
    Slipper Skirt
  • Slot Type
    H
  • Application
    Lincoln
  • Bore Size (inches)
    4.30000
  • Clearance
    0.00250
  • Compression Height
    2.00000
  • Cylinders
    8
  • Distance Between Bosses
    1.375
  • Head Type
    Flat
  • Overall Length (inches)
    4.04
  • Wrist Pin size
    .975O
  • Ring Set Up
    1)5/64,1)3/32,1)3/16
  • Skirt Style
    Slipper Skirt
  • Slot Type
    H
Year Make Engine
Year Make Engine
1958 - 1962 LINCOLN 430 CID
