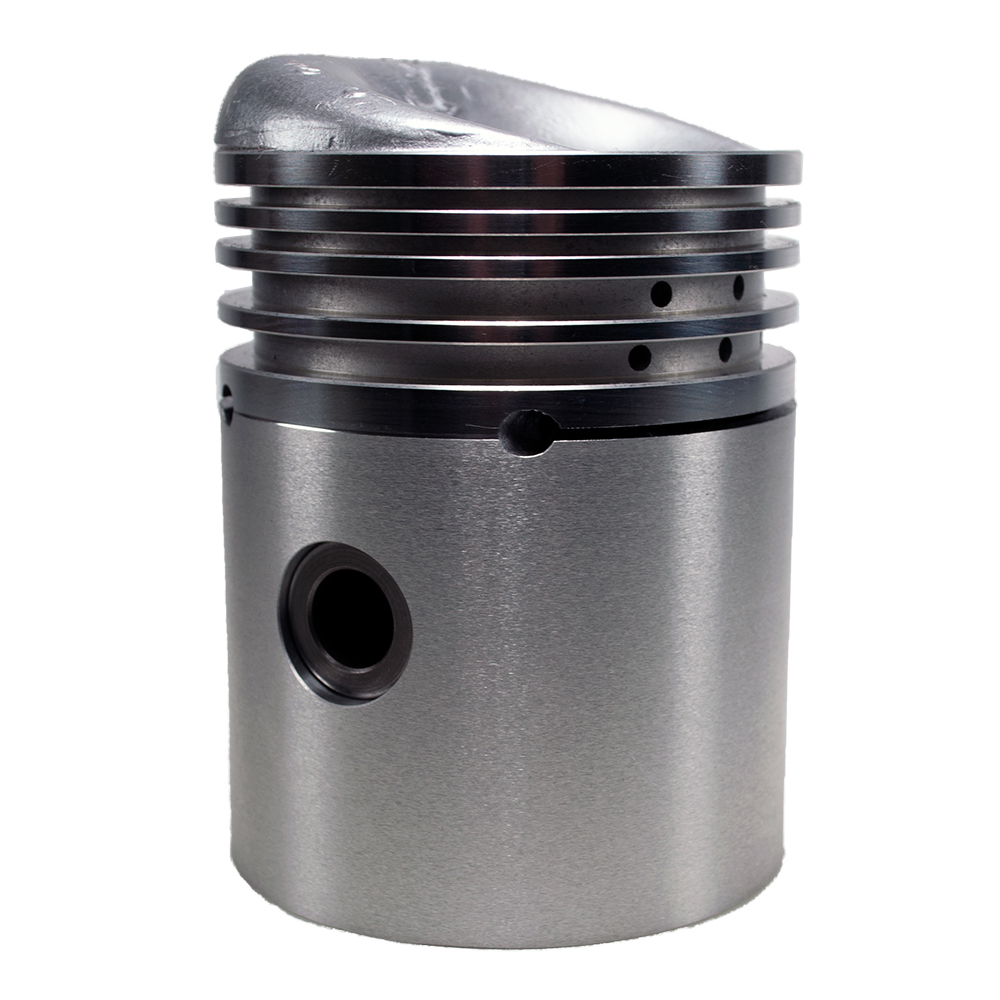

E105 Piston Set

1938-50 Buick Egge Piston Set - E105-8

$ 568.26

1938-50 Buick 3.09 Bore Series 40 and 50, 8 Cylinder Piston Set

SKU: E105-8 Category:

Description

1938-50 Buick 3.09 Bore Series 40 and 50, 8 Cylinder Piston Set

Specifications

Weight 11.50 lbs
Dimensions 18.50 × 9.50 × 5.50 in
Oversize

000, 020, 030, 040, 060
  • Application
    Buick
  • Bore Size (inches)
    3.09385
  • Clearance
    0.00250
  • Compression Height
    2.74500
  • Cylinders
    8
  • Distance Between Bosses
    1.1
  • Head Type
    Irregular Dome
  • Overall Length (inches)
    4.33
  • Wrist Pin size
    .8125CS
  • Ring Set Up
    2)3/32,2)3/16
  • Skirt Style
    Full Round
  • Slot Type
    H
  • Application
    Buick
  • Bore Size (inches)
    3.09385
  • Clearance
    0.00250
  • Compression Height
    2.74500
  • Cylinders
    8
  • Distance Between Bosses
    1.1
  • Head Type
    Irregular Dome
  • Overall Length (inches)
    4.33
  • Wrist Pin size
    .8125CS
  • Ring Set Up
    2)3/32,2)3/16
  • Skirt Style
    Full Round
  • Slot Type
    H
Year Make Engine
Year Make Engine
1938 - 1942 BUICK 248 CID
1946 - 1950 BUICK 248 CID
YEAR MAKE ENGINE
